USB RFI System Level Test Procedure

    Posted by

    Jackey Yeh

    ·

    Test Applicability

    This test is only applicable to systems with Type C Connector and support data
    speeds 5Gbps and above

    • USB 3.2 Hosts End Product
    • USB 3.2 Hubs End Product
    • DRD

    Equipment List
    NoEquipment NameVendorP/N
    1Signals AnalyzerAnritsu/KeysightMS2830A / N9000B
    2RFI System Level Test FixtureLuxshare-ICTMEU-27P11-053
    3RF Cable 1mLab105CBL-350-26-HR100E, M-M
    4RF Cable 0.5mLab105CBL-350-26-HR050E, M-M
    5Shielding BoxLab105SHD6001A
    6Test TableLuxshare-ICTMET-39A17
    75 in-lbs. torque wrenchLuxshare-ICTMEW-40A11

    Signals Analyzer Test Configuration

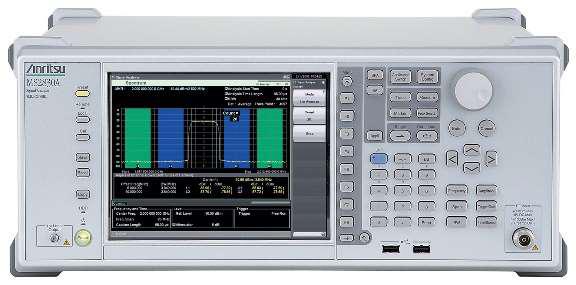

    Anritsu MS2830A

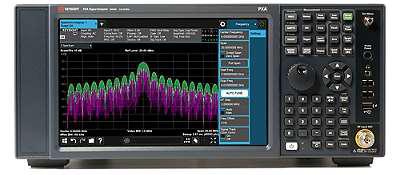

    Keysight N9000B
